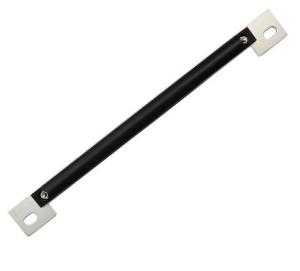

6B/6C long distance car number plate electronic tags, RFID windshield wiper tags
RFID 6B/6C long distance car number plate electronic tags is parking vehicles long-distance cards. Adopting frequency hopping work mode, identify distance can reach more than 15 meters, (related to the card reader), is anti-metal tags.
Parameters:
Support agreement: ISO18000-6B, ISO18000-6C (EPC GEN2) two agreement is optional
Working frequency: ISM 902-928MHz or 860-870MHz
Work style: frequency hopping spectrum (FHSS)
Can write memory: 96bits
Read card speed: by the software Settings, read by a single card on average every 64 bits is less than 10ms
Reading distance: metal environment 15 meters (related to read and write and antenna)
Working pattern: passive
Wipe the number: 100,000 times, support collision algorithm
Storage: 10 years
Material: ABS
Protection grade: IP66
Working temperature: -20℃-+75℃
Storage temperature: -40℃-+150℃
Size: L 243×W 12×T 14±0.2mm ,to the specified size
Installation method: bolts, rivets
Installed on the license plate of tags:
|
